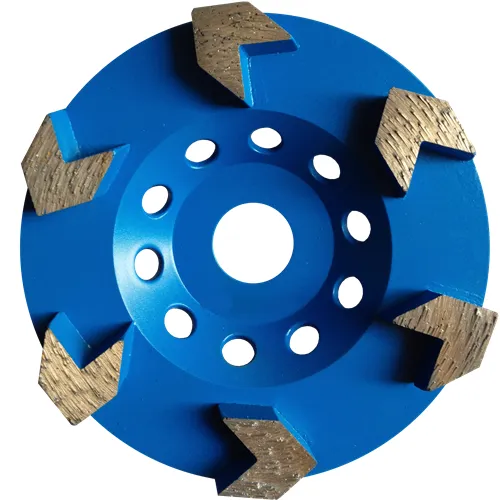

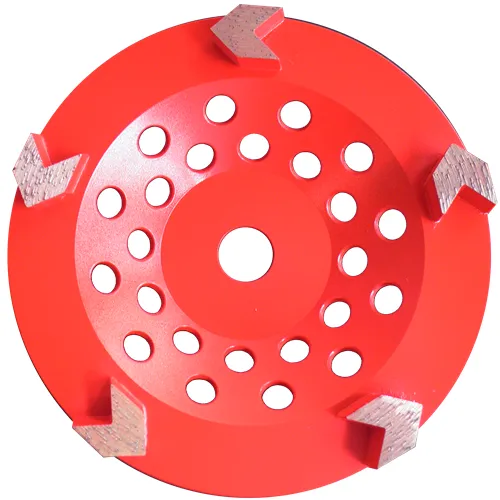

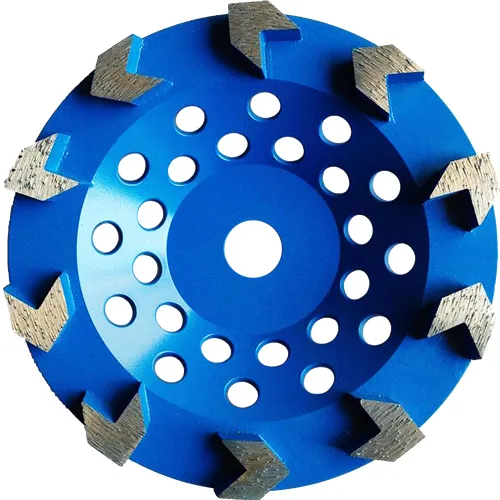

Diamond Arrow Cup Wheel: Field Notes, Specs, and Real-World Buying Advice

If you’re resurfacing concrete or stripping masonry coatings, an arrow cup wheel can save hours. This particular model—Diamond Arrow Cup Wheel For Grinding Concrete And Brick Or Masonry—has become a go‑to in crews I check in with. It’s fast, tracks true, and, to be honest, feels calmer on the hands than some aggressive “turbo” patterns.

What’s trending in surface prep

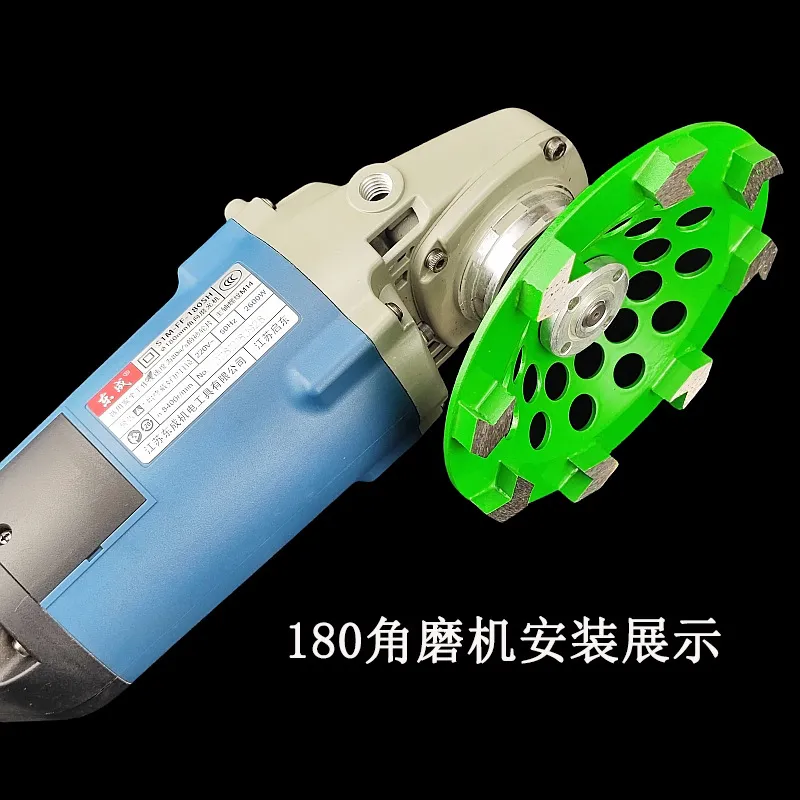

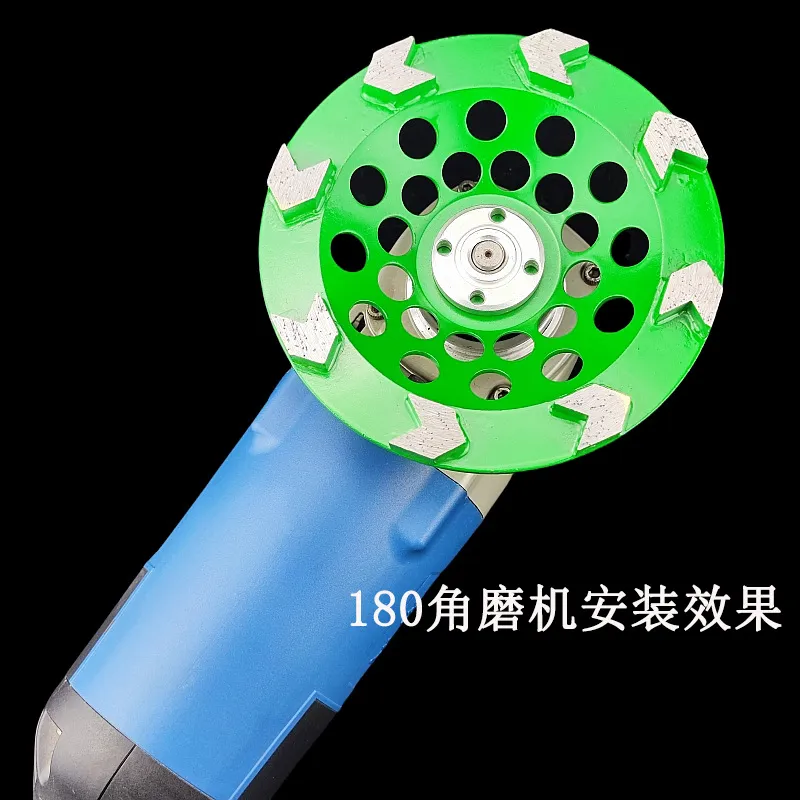

Crews are shifting to dust-shrouded dry grinding—largely for silica compliance—and pairing 7 in grinders with high-CFM vacs. We’re also seeing more variable-speed grinders to dial in removal without burnishing. The arrow cup wheel pattern, interestingly, stays popular because it shears coatings quickly while keeping the wheel stable on edges. Many customers say it “bites” without chattering.

Product snapshot and specs

Origin: No.30 Gaoying Road, Chang'an District, Shijiazhuang, Hebei Province. The segments are laser-welded and designed for fast stock removal on concrete, brick, or stone using angle grinders or floor grinding machines.

How it’s built and tested

• Materials: synthetic diamond, tailored metal bond (often cobalt/iron/bronze blends), heat-treated steel body.
• Manufacturing: hot-pressed segments, laser welding to core for safety; dynamic balancing to reduce vibration.
• Standards and checks: ring test and burst-speed per EN 13236 safety requirements; wheel balance per ISO 1940 principles; silica dust practices per OSHA 29 CFR 1926.1153 when used with a shroud and vac [1][2][3].
• Service life: around 150–500 m² per wheel on concrete, depending on bond match, aggregates, and operator technique. Actually, site conditions swing this quite a lot.

Where it shines

Contractors in floor prep, restoration shops, rental fleets, and masons. The arrow cup wheel shines on edge work, ramps, spalls, and coating removal where straight segments can skate.

Quick case study

A renovation crew (7" grinder, #30 grit, medium bond) stripped acrylic sealer from a 220 m² retail floor. Average progress: ≈2.8 m²/hr per operator with a HEPA vac. Feedback: “stable on edges,” “less hop,” and—surprisingly—lower amp draw than their old double-row. Wheel life hit 3 full days before the swap.

Vendor snapshot (real-world differences)

Customization checklist

• Bond: soft for hard concrete; hard for abrasive block or green slab.
• Grit: #16–#20 for heavy removal; #30–#40 for smoother passes.
• Arbor: 22.23 mm or 5/8"-11; request flange if needed.
• Color coding and private label—nice for rental fleets.

Safety tip: use a shroud, HEPA vac, and follow ANSI B7.1 and OSHA silica rules. Keep RPM within the wheel’s marked speed and perform a ring test before mounting.

References

1. EN 13236: Safety requirements for superabrasive products
2. ISO 9001: Quality management systems
3. OSHA 29 CFR 1926.1153 Respirable Crystalline Silica
4. ANSI B7.1: Safety Requirements for Abrasive Wheels
5. NIOSH: Dust control for concrete grinding
