Field Notes on the Edge Diamond Grinding Wheel

If you work in stone, concrete, or metals, you already know: edges are where reputations are made or broken. The first time I ran the Edge Diamond Grinding Wheel on a stubborn granite nosing, I remember thinking, “finally, a wheel that bites without chattering.” It’s vacuum-brazed, round-edge, and very clearly built for practical shop realities—fast stock removal, clean transitions, and less drama.

What it is, technically—and why that matters

Vacuum brazing welds synthetic diamond grains right to the edge, so all the diamond is on the cutting surface. No filler fluff. That’s why this round-edge profile excels at edging and de-burring across concrete, natural stone, cast iron, and steels. In practice, it tracks smoothly and doesn’t leave the scalloped patterns you sometimes see with coarse cups.

Quick specs (real-world ranges)

Process flow and quality checks

• Materials: selected synthetic diamond (graded), nickel braze alloy, heat-treated steel core.
• Method: precision vacuum brazing to place diamond at the working edge; round-edge dressing.
• Balancing: unbalance tolerance checked per ISO guidelines; runout verification.
• Testing: spin speed proof test (EN 13236 scope), burst margin, and sample-cut trials on granite, C30 concrete, and ductile iron.
• Finish audits: edge smoothness measured on marble and quartz using surface roughness targets.

Origin: No.30 Gaoying Road, Chang'an District, Shijiazhuang, Hebei Province. I’ve seen similar lines in Hebei; shops there tend to obsess over brazing temperature curves—good sign.

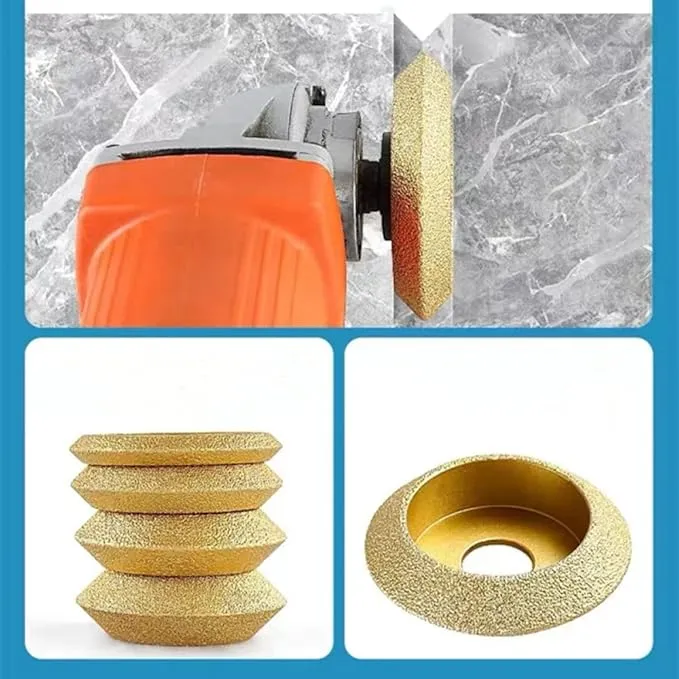

Where it shines

Applications: edge rounding and de-burring on granite tops, concrete steps, architectural precast, cast iron housings, and structural steel prep. Many customers say it reduces “edge burn” and dig-ins, especially on quartzite, which, honestly, can be temperamental.

Vendor snapshot (apples-to-oranges, but still helpful)

Customization and ordering notes

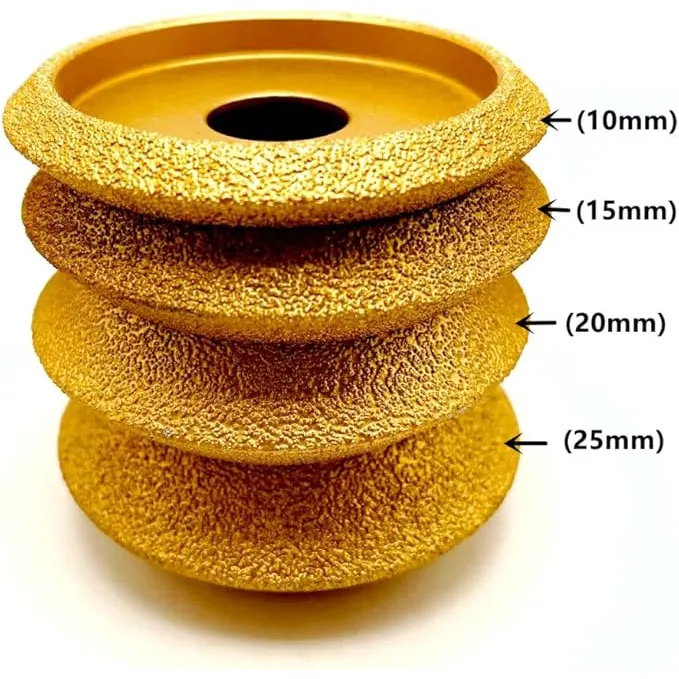

Options include special diameters, custom arbors, grit tweaks, and edge-radius adjustments. If you’re mostly on engineered stone, ask for a slightly finer grit for fewer swirl marks. For cast iron deburring, the coarse spec is a beast.

Case study: precast plant

A Midwest precaster swapped resin cups for the Edge Diamond Grinding Wheel on stair treads. Result: ≈38% faster edge rounds, tool changeovers cut by half, and a small but real dust reduction because fewer passes were needed. They also liked the cooler running—less browning on exposed aggregate.

Safety, compliance, and testing

Use guards, match RPM, and follow ANSI B7.1. This wheel is designed in line with EN 13236 for superabrasives; balance checks reference ISO tolerance practices. If you’re chasing quality audits, keep batch test records and run a quick ring test and visual check before each shift.

Bottom line: versatile, gutsy, and—surprisingly—refined at the edge. If your crew lives on corners and radiuses, it’s a time saver.

Authoritative citations

1. ANSI B7.1: Safety Requirements for the Use, Care and Protection of Abrasive Wheels
2. EN 13236: Safety requirements for superabrasive products
3. ISO 6103: Bonded abrasive products — Permissible unbalance tolerances
4. FEPA: Superabrasives technical guidance
