Pro Diamond Cup Wheels: Fast Concrete & Masonry Grinding

Industry Trends in Abrasive Tooling

The market for abrasive tools, particularly those designed for rigorous material removal and surface preparation, is experiencing dynamic growth driven by innovations in material science and manufacturing processes. Key trends indicate a rising demand for tools that offer superior efficiency, extended service life, and enhanced user safety. The push towards more sustainable manufacturing practices also influences product development, with an emphasis on tools that minimize waste and energy consumption. Furthermore, the construction and renovation sectors globally are seeing an increased adoption of specialized grinding solutions, necessitating high-performance diamond cup wheels. These tools are critical for precision tasks on hard materials like concrete, stone, and masonry, reflecting a broader industry shift towards highly durable and application-specific tooling.

Emerging technologies, such as advanced binder systems and optimized diamond segment configurations, are continually improving the performance metrics of diamond cup wheels. There's a notable trend towards multi-segment designs and specialized bond hardness to cater to diverse material types, from soft concrete to abrasive stone. The integration of dust extraction features in tool designs is also becoming standard, addressing worker health and safety regulations while improving operational cleanliness. This focus on performance, longevity, and safety underpins the strategic evolution of the abrasive tooling market.

Manufacturing Process Flow of Diamond Cup Wheels

The production of high-performance diamond cup wheels is a meticulously engineered process, ensuring superior abrasive capabilities and longevity. It begins with the selection of premium raw materials, primarily industrial-grade diamond grit and specialized metal powders for the bond matrix. The target industries for these robust tools include petrochemical, metallurgy, water supply & drainage, construction, and infrastructure maintenance, where high-efficiency material removal and surface preparation are critical.

Key Manufacturing Steps:

1. Material Preparation: High-quality synthetic diamond particles are carefully selected based on size (mesh), shape, and concentration. These diamonds are mixed with a metallic powder bond (e.g., cobalt, iron, nickel alloys), which dictates the wheel's hardness and wear rate, crucial for optimizing performance on different materials.
2. Segment Pressing: The diamond-metal powder mixture is cold-pressed into molds under immense pressure to form the abrasive segments. This initial compaction is critical for achieving uniform density.
3. Sintering (Hot Pressing): The pressed segments undergo high-temperature, high-pressure sintering in controlled atmospheric furnaces. This process metallurgically bonds the diamond particles within the metal matrix, creating a durable and highly abrasive segment. This forging-like process ensures exceptional material integrity and segment hardness.
4. Core Manufacturing: The wheel core, typically made from high-grade steel, is precisely manufactured, often using CNC machining to ensure perfect balance and concentricity. This prevents vibration and enhances safety during operation.
5. Segment Brazing/Welding: The diamond segments are securely attached to the steel core. For maximum strength and heat resistance, laser welding or high-frequency brazing methods are employed, creating an unbreakable bond between the segment and core. This is a critical step for the safety and service life of the concrete grinding cup.
6. Balancing and Finishing: Each finished diamond cup grinding wheel undergoes precise balancing to eliminate vibrations. Final grinding and finishing operations ensure optimal geometric accuracy and surface finish.
7. Quality Control and Testing: All diamond cup wheels are subjected to rigorous testing, adhering to international standards such as ISO 9001 and ANSI B7.1. This includes tests for segment adhesion strength, rotational balance, dimensional accuracy, and grinding performance. These stringent checks guarantee a consistent service life and operational safety.

Figure 1: High-quality diamond cup wheel segments undergoing inspection.

This comprehensive process ensures that each diamond cup delivers exceptional energy saving through efficient material removal and offers superior corrosion resistance due to its robust construction and high-quality materials.

Technical Specifications and Parameters

Understanding the technical specifications of diamond cup wheels is paramount for selecting the right tool for specific applications. These parameters directly influence performance, efficiency, and the finish quality on various materials.

Selecting the appropriate bond hardness is crucial: a softer bond allows diamonds to release more readily, exposing new cutting edges, ideal for hard materials. Conversely, a harder bond retains diamonds longer, suitable for softer, abrasive materials. This precise engineering ensures optimal material removal rates and extended tool life for every application, from grinding concrete cup surfaces to preparing stone.

Figure 2: Close-up of diamond segments on a cup grinding wheel.

Application Scenarios

Diamond cup wheels are indispensable tools across a wide array of industries, particularly where high-performance grinding, shaping, and surface preparation of hard and abrasive materials are required. Their versatility makes them a staple in construction, renovation, and specialized industrial applications.

• Concrete Surface Preparation: Essential for smoothing rough concrete surfaces, removing coatings, epoxies, glues, and preparing floors for new installations. They effectively eliminate irregularities, trip hazards, and high spots on concrete slabs.
• Masonry and Brick Grinding: Ideal for shaping, beveling, and grinding various masonry products, including bricks, blocks, and natural stones, during construction or restoration projects.
• Stone Fabrication and Polishing: Used extensively in the stone industry for granite, marble, engineered stone, and quartz. They perform initial aggressive grinding to shape edges and remove material, preceding finer polishing steps.
• Asphalt and Road Repair: For grinding down uneven asphalt surfaces or preparing areas for patching, offering precise material removal.
• Paint and Rust Removal: Efficiently strip tough paints, sealants, and rust from metal or concrete surfaces, preparing them for recoating or further treatment.

Figure 3: Diamond cup wheel in action on a concrete surface.

The choice of segment configuration – from aggressive single-row for rapid material removal to multi-row or turbo designs for smoother finishes and extended life – allows for tailored performance across these diverse applications, ensuring optimal results for every diamond cup grinding wheel task.

Technical Advantages and Performance

The technical advantages of employing advanced diamond cup wheels are substantial, offering significant improvements in efficiency, longevity, and overall project economics compared to conventional abrasive solutions. These advantages stem from the inherent properties of industrial diamonds and superior manufacturing techniques.

• Exceptional Hardness and Abrasive Power: Diamonds are the hardest known material, providing unparalleled cutting efficiency and speed on tough materials like concrete, granite, and masonry. This translates to faster project completion and reduced labor costs.
• Extended Service Life: Due to their extreme wear resistance and the robust metal bond, diamond segments retain their cutting ability over a significantly longer period than silicon carbide or other conventional abrasives, leading to fewer tool changes and lower operational costs.
• Consistent Performance: The controlled exposure of new diamond particles during the grinding process ensures a consistent cutting rate and surface finish throughout the tool's lifespan.
• Reduced Heat Generation: Optimized segment designs and diamond concentration help dissipate heat more effectively, preventing damage to the workpiece and extending tool life, especially during dry grinding applications.
• Versatility Across Materials: With various bond types and segment configurations, a single diamond cup wheel can be optimized for different material hardnesses, offering a versatile solution for diverse tasks.
• Improved Safety: High-quality core materials and precision balancing minimize vibration, enhancing operator comfort and reducing the risk of tool failure.

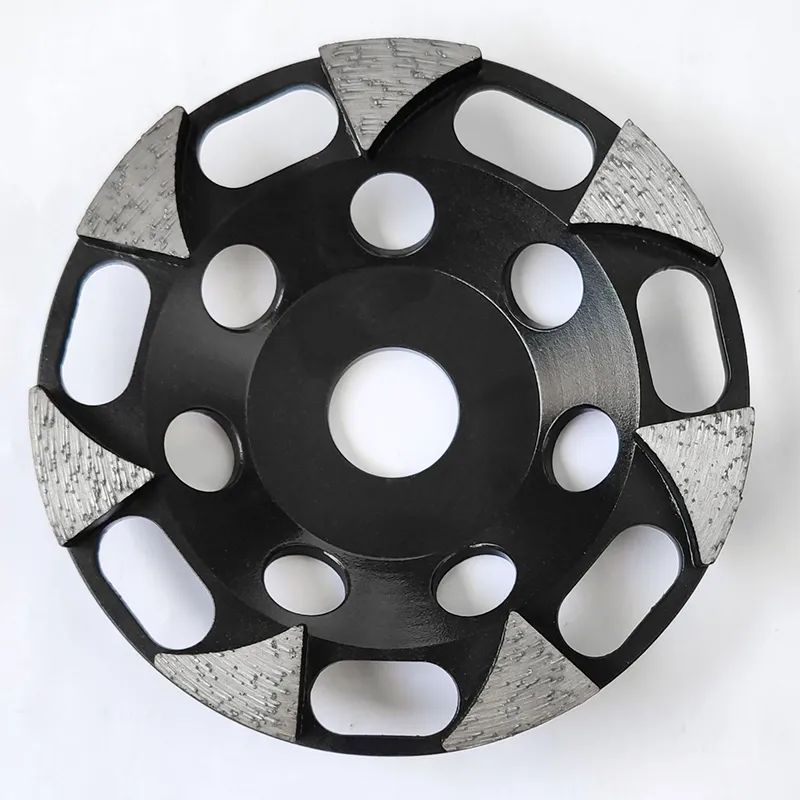

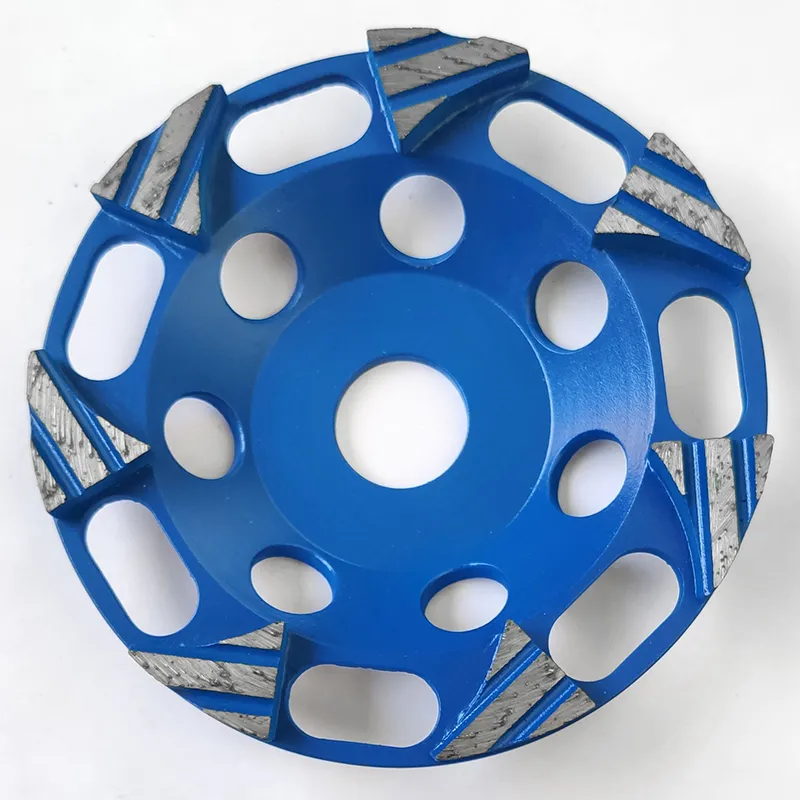

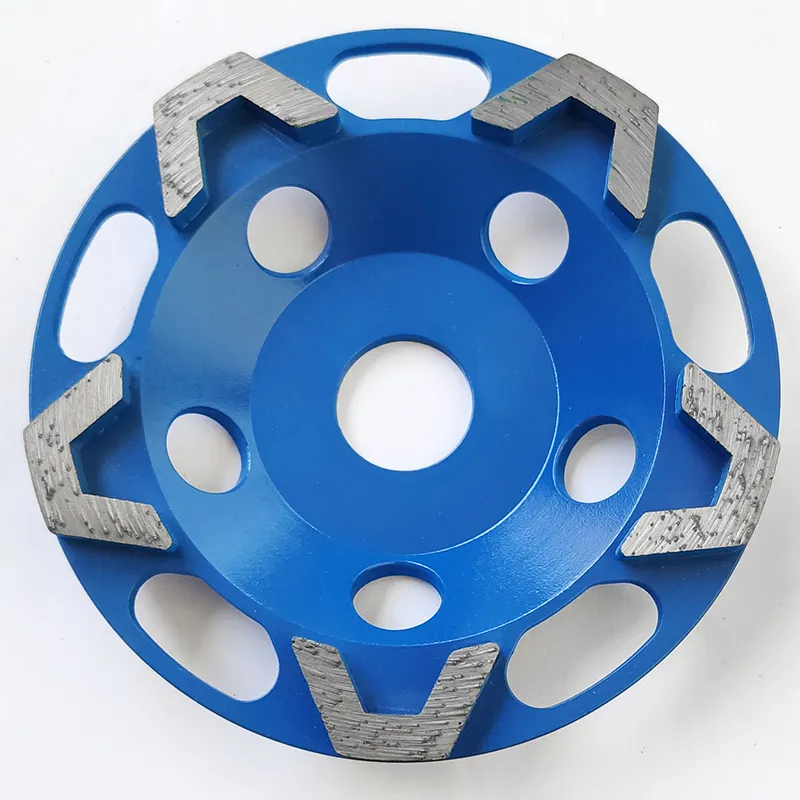

Figure 4: A range of diamond cup wheels showcasing various segment designs.

These advantages collectively translate into superior grinding efficiency, reduced labor, and significantly lower overall project costs for any concrete grinding cup application.

Vendor Comparison and Selection Criteria

Selecting the right vendor for diamond cup wheels is as critical as choosing the right product. A thorough comparison based on specific criteria ensures optimal performance and value. Leading manufacturers distinguish themselves through a combination of product quality, innovation, and customer support.

When evaluating suppliers for your concrete grinding cup needs, consider not only the initial cost but also the total cost of ownership, which includes tool lifespan, efficiency, and the level of support provided. Our commitment to ISO 9001 quality management ensures superior product reliability and performance, backed by years of industry expertise and client testimonials.

Figure 5: Quality assurance testing for diamond cup wheels.

Customized Solutions

Recognizing that standard off-the-shelf solutions may not always meet the unique demands of specialized applications, we offer comprehensive customized solutions for diamond cup wheels. Our engineering team collaborates closely with clients to develop tools precisely tailored to their specific material, machinery, and desired finish requirements.

Customization Parameters Include:

• Diamond Grit Size and Concentration: Tailored for abrasive or hard materials, optimizing for aggressive removal or fine finishing.
• Bond Matrix Formulation: Engineered to match the hardness and abrasiveness of the workpiece, ensuring optimal diamond exposure and tool life.
• Segment Design and Configuration: From unique segment shapes for specific edge work to varying numbers and arrangements for improved dust extraction or faster grinding.
• Core Material and Arbor Size: Customized to fit specialized grinding equipment and ensure maximum safety and balance.
• Cooling Channels and Dust Ports: Integrated designs for wet grinding or enhanced dust control in dry applications.

Our custom diamond cup solutions have proven particularly valuable in large-scale infrastructure projects and specialized manufacturing environments where off-the-shelf tools fail to deliver the required efficiency or precision. Partner clients often include leading contractors in civil engineering, industrial flooring specialists, and precast concrete manufacturers. Our expertise in tailoring a diamond cup grinding wheel ensures maximum operational efficiency and cost-effectiveness for even the most demanding projects.

Figure 6: A customized diamond cup wheel with unique segment design.

Application Case Studies

Real-world applications demonstrate the tangible benefits of high-performance diamond cup wheels. Our experience includes a diverse portfolio of successful projects across various sectors.

Case Study 1: Industrial Warehouse Floor Restoration

Client: Major Logistics Provider, Houston, TX.
Challenge: The client required the removal of thick epoxy coatings and aggressive leveling of 5,000 sq. meters of severely worn concrete flooring in an active warehouse, with minimal disruption to operations.
Solution: We provided custom-designed 180mm turbo segment diamond cup wheels with a medium-hard bond, optimized for aggressive coating removal and fine grinding on hard concrete. The tools were used with industrial floor grinders featuring integrated dust collection.
Results: The project was completed 25% faster than estimated, with a 30% reduction in diamond tooling consumption compared to previous projects. The client reported excellent surface uniformity and readiness for new resin flooring. "The cup grinding wheel from MyDiamondBlade exceeded our expectations for speed and durability," stated the project manager.

Case Study 2: Bridge Deck Rehabilitation

Client: State Department of Transportation, Midwest Region.
Challenge: Removing deteriorated concrete and preparing bridge deck surfaces for new overlay application, requiring precise depth control and high material removal rates on reinforced concrete.
Solution: We supplied heavy-duty, arrow-segment diamond cup grinding wheels designed for demanding applications on abrasive, high-strength concrete. These wheels featured a robust bond and optimized segment spacing for efficient debris removal.
Results: Our tools achieved a consistent removal depth of 3-5mm across 1,500 linear meters of bridge deck, significantly reducing re-work. The superior longevity of the diamond cup wheels also led to a 40% decrease in tool replacement costs compared to the previous supplier. This success highlights our authoritative position in providing robust solutions for critical infrastructure.

Figure 7: Diamond cup wheel removing coatings on an industrial floor.

Trustworthiness: FAQ, Lead Time, Warranty, and Support

Building trust with our B2B partners is foundational to our operations. We ensure transparency in our processes, product quality, and customer support.

Frequently Asked Questions (FAQ)

• Q: How do I choose the right bond for my concrete?
  A: For very hard concrete, a softer bond is recommended to allow the diamonds to wear and expose new cutting edges. For softer, more abrasive concrete, a harder bond will prolong tool life. Our technical team can assist with specific recommendations.
• Q: What is the typical service life of your diamond cup wheels?
  A: Our premium diamond cup wheels are engineered for extended life, typically ranging from 120-200 hours of effective grinding on standard concrete, depending on the material, application, and operator technique.
• Q: Can your cup grinding wheels be used for wet and dry applications?
  A: Most of our diamond cup wheels are designed for dry grinding, but specific models are available for wet applications, which can extend tool life and reduce dust. Always check product specifications.

Lead Time and Fulfillment

For standard diamond cup wheels, typical lead times range from 3-7 business days for in-stock items. Custom orders require a lead time of 2-4 weeks, depending on complexity and production queue. We offer expedited shipping options and maintain robust inventory levels to minimize delays. Our logistics partners ensure reliable and timely delivery worldwide.

Warranty Commitments

We stand behind the quality of our products. All our diamond cup wheels come with a 1-year manufacturer's warranty against defects in materials and workmanship. This warranty ensures that products meet the highest industry standards, and any manufacturing faults are addressed promptly. Our commitment to ISO 9001 standards is integral to our warranty pledge.

Customer Support Information

Our dedicated technical support team is available to assist with product selection, application guidance, and troubleshooting. You can reach us via phone at +1 (XXX) XXX-XXXX, email at support@mydiamondblade.com, or through our website's live chat feature during business hours. We pride ourselves on responsive and knowledgeable assistance to ensure your complete satisfaction.

Figure 8: Customer support team ready to assist with technical queries.

References

1. International Organization for Standardization. (2015). ISO 9001:2015 - Quality management systems – Requirements.
2. American National Standards Institute. (2017). ANSI B7.1 - Safety Requirements for the Use, Care, and Protection of Abrasive Wheels.
3. Smith, J. R., & Johnson, A. L. (2020). Advances in Diamond Tooling Technology for Construction Materials. Journal of Materials Science and Engineering, 15(2), 112-125.
4. Wang, P., & Li, Q. (2019). Optimization of Diamond Segment Bond Matrix for Enhanced Concrete Grinding Performance. International Journal of Abrasive Technology, 7(4), 289-302.
