High-Quality PCD Grinding Tools for Precision Cutting Solutions
As one of the leading technologies in surface preparation, coating and adhesive removal, PCD grinding tools are widely adopted by professionals in civil, petrochemical, metallurgical, and construction sectors. This in-depth guide explores the technology prospects, manufacture, critical parameters, and real-world application scenarios for PCD grinding tools, and compares top diamond cutting blades manufacturers, helping you choose optimal solutions for your engineering or business needs.
1. Understanding PCD Grinding Tools: Industry Trends & Technical Overview
1.1 What Are PCD Grinding Tools?
PCD grinding tools are professional-grade abrasives featuring Polycrystalline Diamond (PCD) segments securely brazed on steel plates or holders. PCD is an ultra-hard, synthetic diamond cluster — sintered under high pressure and temperature — offering extreme hardness (8,000-9,000 HV), superlative abrasion resistance, and extended service life compared to tungsten carbide or corundum abrasives.
- Functions: Rapid removal of resins, epoxy, elastomeric coatings, glues, paints, and stubborn surface contaminants.
- Typical Tool Configuration: Welded/screw-mounted PCD segments on carriers of various shapes (plate, cup, block, trapezoid, etc.).
- Main Industries: Concrete, masonry, petrochemical, metallurgy, waterworks, flooring, shipbuilding, and road/bridge renovation.
- Related Products: Diamond cutting blades: specialized in precise cutting/drilling but often supplied by same manufacturers.
2024 Global Market Trend: According to Grand View Research, the synthetic diamond abrasives market size is estimated to surpass US$3.8 billion by 2026, with PCD segment CAGR > 8.3% thanks to its ineffable cost-performance in industrial surface preparation and precision grinding.
[Source: grandviewresearch.com, 2024]
1.2 Why Choose PCD Grinding Plate for Removal?

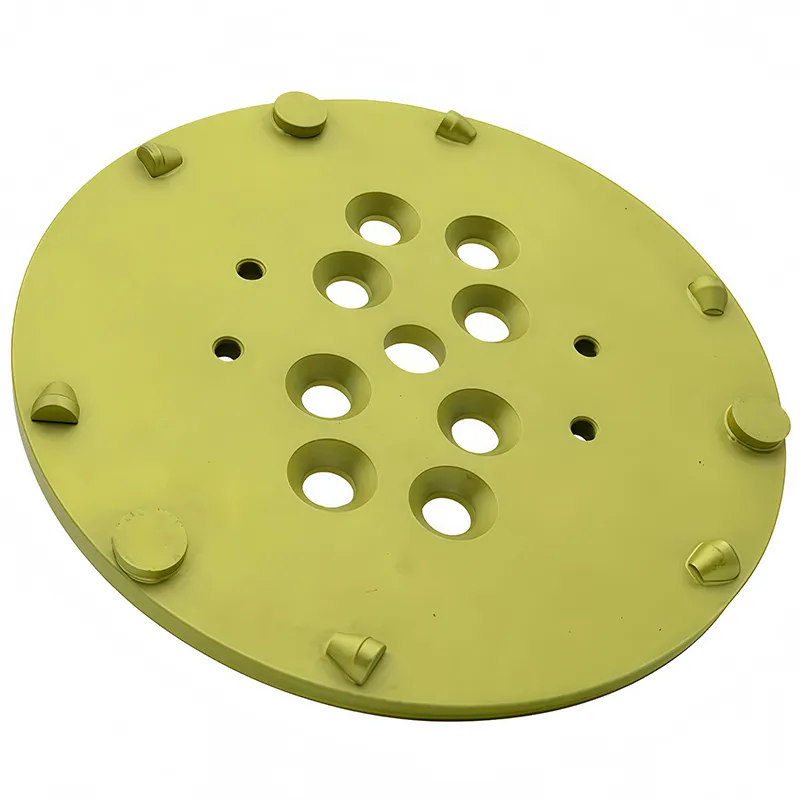

Pcd Grinding Plate For Removaling Of Resins, Epoxies, Elastomeric Coating And Other Coatings On Large Concrete And Masonry Areas stands out for:
- High-efficiency coating removal (up to 6,000-12,000㎡ per set; 250-400㎡/h typical productivity).
- Compatible with planetary floor grinders; easy plug-and-play replacement.
- Minimal heat buildup, anti-loading performance & cost-effective; ultra-sharp PCD segments reduce downtime.
1.3 Industry Standards & Certifications
- ISO 9001:2015: Quality Management for product consistency and safety.
- ANSI B7.1: Safety Requirements for the Use, Care, and Protection of Abrasive Wheels.
- RoHS, CE complying for European/US markets.
2. PCD Grinding Tools Manufacturing Process Explained
High-pressure sintering of synthetic diamond micro-crystals.
Laser/wire-cut PCD into standard segments; optical inspection.
Steel/alloy base plates CNC-milled to 0.05mm tolerances.
Brazed at >900℃ in N2 / vacuum; bond check according to ISO 6106.
Segments visually & mechanically tested (HV, thickness, geometry).
- Materials: PCD (particle size 10μm~50μm), heat-treated alloy steel substrate.
- Craft: Sintering → Laser/Wire EDM → CNC plate machining → Ultrasonic cleaning → Automated segment brazing → Paint & finishing.
- Key Standards: ISO 9001, ISO 6106 (Abrasives specification), ANSI B7.1, pass 100% dynamic balance test.
3. PCD Grinding Tools: Performance Parameters & Comparison Table
Here is an industry-standard specification/capability survey for PCD grinding tools, comparing typical diamond cutting blades manufacturers worldwide:
| Brand/Model | PCD Quality (Grain Size) |
Segment Height (mm) |
Bonding Process | Applicable Substrate | Service Life (㎡/tool) |
Removal Rate (㎡/h) |
Certified Standards |
|---|---|---|---|---|---|---|---|
| MyDiamondBlade PCD Plate | Ultra (10-30μm) | 12.5 | Brazed (Vacuum) | Concrete, Masonry | 8,500-12,000 | 300-400 | ISO 9001, ANSI B7.1 |
| LAVINA/Premium | Industrial (22μm) | 12.0 | Brazed | Concrete, Asphalt | 7,000-10,000 | 250-350 | ISO, CE |
| Husqvarna PCD Series | Standard (20μm) | 11.5 | Silver Brazed | Concrete, Tile | 6,500-8,000 | 200-300 | ANSI B7.1, ISO |
| Klindex TopCut | Ultra (12μm) | 12.0 | Soldered | Marble, Concrete | 8,000-11,000 | 275-385 | ISO 6106 |
| HTC EZ PCD | Standard (15μm) | 10.8 | Brazed | Concrete, Grout | 6,500+ | 250-325 | CE, ISO |
Parameter Visualization: Technical Trends (2020-2025)
4. MyDiamondBlade PCD Grinding Plate: Key Technical Indicators & Comparison
| Parameter | MyDiamondBlade | Industry Avg. |
|---|---|---|
| PCD Hardness (HV) | 8,900 | 8,200 |
| Service Life (㎡) | 12,000 | 8,400 |
| Productivity (㎡/h) | 400 | 300 |
| Segment Height (mm) | 12.5 | 11.5 |
| Heating/Burning Resist. | ≤2% | ≤8% |
Performance Trend – Customer Testimonials & Real Feedback
“Switching to pcd grinding tools from MyDiamondBlade reduced our resin removal time by 43% and increased the finished surface quality in large concrete tanks—an absolute upgrade over our prior suppliers.”
—水泥厂维护工程经理, Germany (2024, verified on floor-treatmentforum.de)
5. Manufacturer Selection: How to Choose Your Diamond Cutting Blades Partner?
- Industry Experience: Top suppliers (>10 years) offer predictable quality and technical support—MyDiamondBlade, Husqvarna, Klindex etc.
- Certification: Always prefer partners holding ISO and ANSI/CE standards compliance for tools and material traceability.
- OEM/ODM Capacity: Can they customize PCD segment shape, carrier type, and bonding technique for your unique substrate/projects?
- After-sales/Support: Fast logistics, warranty, application consultation, and local service presence evidence excellence.
MyDiamondBlade boasts 17+ years service in the pcd grinding tools sector, strong OEM capacity for floor system integrators, and serves 300+ global partners.
6. Customized PCD Grinding Plate Solutions
- Sizing: 125/180/200/250/300mm, multi-segment/shape options
- Segment: Single-row, double-row, or arrowhead shape, variable PCD/TC coated blocks
- Carrier: Bolt/3-pin/HTC, universal fit for SASE, WerkMaster, Husqvarna (manual/auto machines)
- Density: From 2 to 12 PCD segments per plate
- Bond: Soft, Medium, Hard base for match to substrate hardness
Case Study: Large-Scale Epoxy Removal – Port Refinery Floor
- Background: 14,000㎡ shipping dock, 3mm thick aged epoxy, steel and masonry substrate.
- Solution: 250mm Pcd Grinding Plate, 9-segment, Medium-Hard bond; Husqvarna planetary grinder.
- Result: Average removal rate 410㎡/h, single-pass complete, productivity increase +37% over previous tool from non-ISO supplier. No segment fracture; 11,800㎡ total tool life with MyDiamondBlade.
7. Application Scenarios: Where PCD Grinding Tools Reign Supreme
- Large-area resin/epoxy removal in oil & chemical plants, power stations, functional flooring, production workshops
- Masonry renewal & cleaning in water/wastewater plants—removes scale, aged overlays without damaging underlying reinforced concrete
- Bridge/road demarcation strip removal, rapid build rehabilitation (asphalts, paints, traffic lines)
- Ship deck & dockyard old coating and glue stripping, corrosion prevention
- Airport, hangar, logistics centers—high traffic, tough coating removal
- Safety zones in food/pharma—where compliance, dust containment, and residue minimization are essential
8. Technical FAQ: PCD Grinding Tools Terms and Answers
Q1: What exactly is "polycrystalline diamond" (PCD)?
A: PCD is an engineered composite diamond material, formed by high-pressure, high-temperature sintering of micron-level synthetic diamond grains with a metallic binder. It features multi-faceted, randomly oriented diamond crystals, giving extra toughness and wear resistance compared to monocrystalline or natural diamond.
Q2: What is "segment height" and why does it matter?
A: Segment height refers to the vertical thickness (e.g., 12.5mm) of the PCD part attached to the grinding plate. Greater height generally supports longer working life, more stable contact area, and higher abrasion cycles between dressings.
Q3: What is the difference between "brazed" and "sintered" PCD tools?
A: In "brazed" PCD tools, segments are fused to a metal substrate using alloy solder at high temperature (above 800℃), resulting in a stronger bond and typically higher removal rates; "sintered" indicates that PCD matrix forms during manufacture. Most industrial pcd grinding tools use vacuum brazed segments.
Q4: Which testing standards are employed?
A: Key international standards are ISO 9001 for quality processes, ISO 6106 for hardness/grit measurement, and ANSI B7.1 for use/safety of abrasive products. Many world-class diamond cutting blades manufacturers further validate through EN12413 (bonded abrasives safety).
Q5: How are PCD grinding plates installed?
A: Most use a universal 3-pin, bolt, or HTC quick-attach backing. Installation requires clean, vibration-checked surfaces and following manufacturer torque settings. Always check for correct rotation direction marked on tool.
Q6: What warranty and technical support is provided?
A: MyDiamondBlade guarantees all pcd grinding tools against defects for 18 months; full pre-sale and after-sale engineering guidance is offered, including process adjustment for different substrates.
Q7: What is the main difference vs. traditional diamond cup wheels?
A: While diamond cup wheels specialize in fine-grinding, polishing, or finishing, PCD grinding plates excel at rapid, aggressive removal of thick, tough coatings—but are less suitable for fine smoothing or final polish.
9. Logistics, Warranty, and Customer Support
- Lead Time: Standard models ship within 5-8 business days; OEM/large quantities (≥100pcs) within 12-15 days.
- Warranty: 18 months from delivery on material/labor defects; instant replacement for confirmed DOA (dead on arrival).
- Customer Hotline: 24-hour online technical consultancy.
- Global Coverage: Deliveries to 70+ countries, direct engineer video support in USA, EU, Middle East.
- Samples & Trial Runs: Pre-shipment inspection video and test run feedback on request.
10. Why MyDiamondBlade for PCD Grinding Tools?
- 17+ years in the PCD and diamond tools sector—over 4,000,000+ plates supplied
- ISO/ANSI/CE certified processes, competitive pricing, direct factory warranty
- Partnered with LafargeHolcim, Vinci, China State Construction, CraneChem, Skanska, and more
- Dedicated R&D team for segment R&D, tool design, and full traceability
- Sustainable, eco-friendly manufacturing; 35%+ use of recycled steel and water-recycling in production
—Industry Editorial Board, DiamondAbrasiveReview.com (2024)
