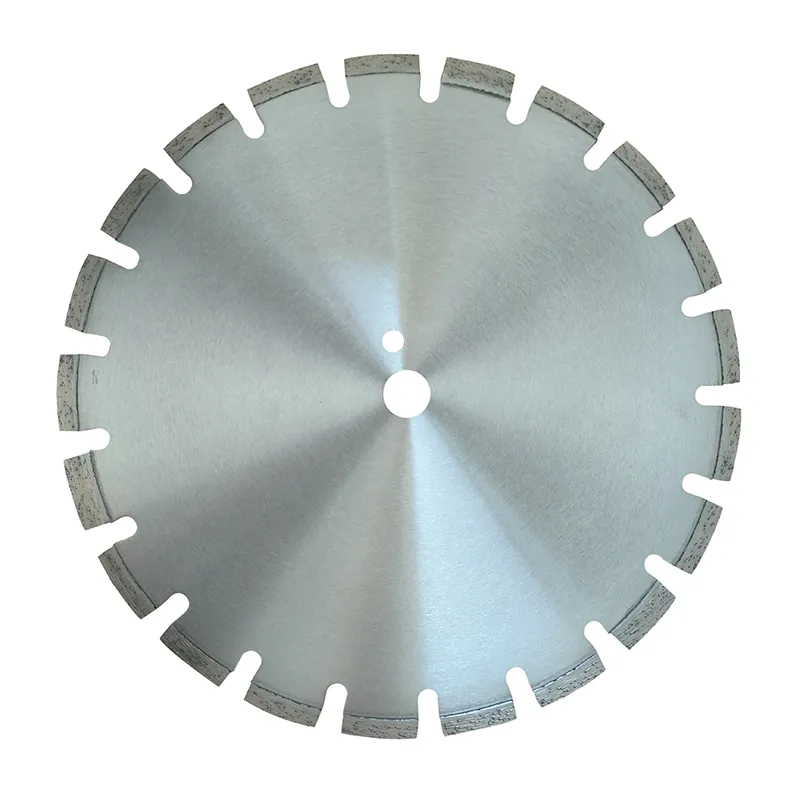

Premium Diamond Blade for Cutting Concrete - Fast, Precise, Durable

Industry Trends & Market Overview

The rapid growth of global construction—valued at USD 10.7 trillion in 2023 (Statista)—is fueling demand for high-performance diamond blade for cutting concrete. Innovative blades are critical for efficiently cutting reinforced concrete, asphalt, brickwork, and more, especially as building designs embrace tougher materials and complex geometries.

According to Grand View Research and the Federal Highway Administration, the diamond tools market—especially concrete diamond blades—maintains a CAGR of over 6.5% through 2028, driven by infrastructure renewal and urbanization worldwide.

• Key Markets: Construction, highway engineering, municipal pipeline, petrochemicals, metallurgy
• Growth Drivers: Durable materials, environmental standards (ISO 9001), energy efficiency, precise cutting requirements
• Technological Focus: Long-life blades, anti-abrasion surfaces, CNC manufacturing for accuracy, and compliance with ANSI/EN13236 safety standards

Diamond Blade for Cutting Concrete: Parameter Comparison Table

Technical Parameters Trend Visualization

Manufacturing Process of Diamond Blade for Cutting Concrete

The core performance of any concrete diamond blade depends on premium material selection, advanced processing, and rigorous QC standards. Here’s a breakdown of the end-to-end process for Diamond Blade For Cutting Concrete And Reinforced Concrete (Product Link):

1. Raw Material Selection
   • Industrial synthetic diamonds (14, 16, 18 grit) selected for hardness, purity
   • High-grade alloy steel plate (Stainless 65Mn, Q235)
2. Powder Mixing & Segment Forming
   • Precise weighing, blending with metallic matrix powder
   • Pressed under high-pressure molds (up to 250 tons)
3. Hot Press Sintering
   • Sintered at 750–880°C, fusing detectors applied to bond diamonds with the matrix
4. Blade Core Processing (CNC, Waterjet)
   • Core cut and ground to micron tolerance, minimizing out-of-round errors (<0.06mm)
5. Brazing/Welding
   • Segments attached to core by laser welding (rebar cutting, max strength)
   • For economy models: silver brazing option
6. QC Inspect & Dynamic Balancing
   • 100% output inspected (flatness, concentricity, hardness; per ISO/EN/ANSI)
7. Color Coding & Packaging
   • Waterproof coating, laser logo, custom labeling

Leading Brands & Manufacturer Comparison: Diamond Blade for Cutting Concrete

MyDiamondBlade’s DiamondCut Pro+ demonstrates exceptional value with advanced laser welding, support for OEM/ODM, ISO/ANSI compliance, and a longer operational lifespan at cost-effective pricing. Our deep partnership with municipal builders and leading contractors globally confirms sustained product performance and reliability.

Customization & Technical Advantages

Diamond Blade For Cutting Concrete And Reinforced Concrete can be tailored to various applications according to aggregate hardness, desired speed, and local cooling practices.

• Segment geometry (turbo, segmented, continuous)
• Diamond grit size, bond hardness, rim thickness per site needs
• Laser logo/labeling to show OEM customers their brand/building info

Technical Advantages:

• ISO-certified processes ensure reliable, consistent performance
• Laser welding creates robust segment adhesion—minimizing separation even during rebar cutting
• Hot-press sintered segments for maximum wear resistance and sharpness
• Optimized bond matrix for dry & wet use—maximal blade lifespan per USD
• Custom rim thicknesses to suit heavy-duty, controlled, or fine-finish cuts
• Intelligent vacuum coating—enlarges resistance to rust & corrosion (suitable for stone, steel, pipeline, chemical use)

Application Fields: Stone material processing, municipal tunnels, bridge demolition, building envelope opening, water/gas pipeline installations, metallurgy support, petrochemical construction, heavy machinery assembly, etc.

Product Technical Index – Visualization (Diamond Blade For Cutting Concrete And Reinforced Concrete)

Real-World Application – Customer Feedback & Engineering Case Studies

Diamond Blade for Cutting Concrete – FAQ & Technical FAQ

1. What material is used for the diamond segment and core?

The blade core is generally made from 65Mn high-tensile steel or superior Q235 steel. Segments comprise industrial synthetic diamond (14–30 grit) within a matrix of metallic powders (cobalt, nickel, iron, copper). Result: optimal strength and wear.

2. What are the typical blade dimensions for concrete diamond blades?

Standard sizes range from 115mm to 600mm diameter, segment height from 7–18mm, thickness 2.2–5.0mm. Customization per actual job is available.

3. What type of bonding is used for concrete diamond blades?

Blade matrix bond types: Soft bond (for hard concrete), Medium bond (universally used), Hard bond (for soft aggregate). Diamond/metal bond ratio determines cutting rate and lifespan.

4. Which safety and quality standards apply?

Products are manufactured and tested according to ISO 9001, EN13236 (Europe), and ANSI B7.1 (USA). Critical tests include segment drop, working speed to 80m/s, and corrosion resistance (ISO 16623).

5. Is it possible to cut both wet and dry with the same blade?

Yes, with proper matrix adjustment: wet-use increases blade life (reduces friction/temperature), but dry-use models are made with special supports/bond to dissipate heat efficiently.

6. How do I install and maintain a diamond concrete grinding disc?

Install with standard M14/22.23 arbor via torque wrench (per ANSI B7.1). After use, clean and dry the blade thoroughly. Avoid reverse running; monitor segment wear, replace if height <2.0mm.

7. Delivery & warranty?

Standard manufacturing: 2–5 working days; custom blades: 7–15 days. All blades carry 12–18 month warranty (workmanship/product quality); full technical support and online troubleshooting provided. SGS/TUV third party inspection available.

References & Further Reading

• Diamond Tools Market Size Report, Grand View Research
• Diamond Blade Guide: Expert Uses – Industry Forum Discussion
• Diamond Tools in Concrete Engineering, International Concrete Abstracts Portal
• ISO 9001:2015 – Quality Management Systems
